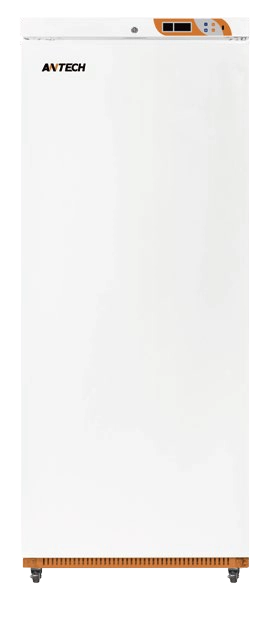

LabSafe Series-25°/MDF-25U400
-25°C/ Desktop/ MDF-25U400
LabSafe series upright lab freezers are used to store
medicines, vaccines or lab materials in pharmacies,
hospitals, clinics and labs. Product temperature sensor
is put into aluminum block to simulate real product
temperature. Access port is available for additional
temperature probe.
These units use environmentally friendly, natural
refrigerants that are fully compliant with new EPA/SNAP/UL
regulations
Temperature data storage and USB port are supplied as
standard. A pdf format file including temperature curve
and temperature data can be downloaded. A quick check
of maximum and minimum temperature record in previous
24 hours is available, making the job much easier for
operators. LED light for convenient operation.
.

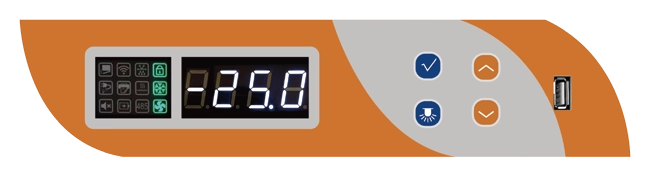

TC-200 Controller
Microprocessor electronic controller for LabSafe series laboratory freezers, fitted with dual LED screen to display inner
chamber temperature and key working conditions. Advanced dual sensor control system for accurate temperature
control.
Performance
1. Forced air cooling for excellent temperature uniformity
2. Variable (cycle) defrost
3. Intelligent microprocessor controller with LED digital display resolution 0.1
4. Magnetically sealed door with rapid cool-down mode after door opening
5. Dual sensor design: Independent control sensor and display sensor
Environment Friendly
1. Natural refrigerant compliant with EPA and SNAP non-ozone depleting mandates
2. CFC-Free polyurethane foaming insulation
3. High efficiency cooling system for lower energy consumption and carbon emission
Ergonomic Design
1. Electric heating glass door prevents condensation water
2. Door-activated and exterior switch-activated interior LED lighting
3. Self-close door for convenient operation
4. Ultra-quite design reduces noise level
Safety
1. Build-in data storage and USB port for download
2. Password protection avoids key parameters unauthorized change
3. Safety door lock, preventing unauthorized access
4. Access port for additional temperature probe
5. Remote alarm contacts
Alarms
1. High temperature
2. Low temperature
3. Door ajar
4. Power failure
5. Sensor error
2~8°C PharmaSafe series
| Model | MDF-25U400 | |
| Main specifications | Type Temperature range (°C) Climate type Capacity (L) Internal W×D×H (mm) External W×D×H (mm) Weight（KGs） Insulation (mm) Cooling type Defrost Refrigerant | Upright -10～-25 N 380 500×520×1550 600×680×1840 74 50 Direct cooling Manual R290 |
| Control system | Controller Display Display accuracy | TC-200 LED digital 0.1 |
| Power | Power supply (V/Hz) Rated power (W) Rated Current (A) | 220/50 220/60 120/60 220 220 230 1.7 1.7 2.0 |
| Data memory | High/low temp check USB port Cloud monitoring (Wi-Fi) | Y Y CryoMonitor 2000TF |
| Alarm functions | Visible/audible alarm High/low temp Sensor failure Door open Low battery Power failure Remote alarm contact | Y Y Y Y Y Y Y |
| Other feature | Door lock with key Inner LED light Adjustbale foot Caster Test access port Shelves adjustable Shelf at buttom Door QTY | Y Y N/A Y Φ20mm x 1 5 1 1 |
| Material | Exterior Interior Door Insulation | Pre-coated steel Pre-coated aluminum Solid door Polyurethane |
| Shipping | Gross weight (KGs) Packing W×D×H (mm) Volume (m³) | 92 660×700×1900 0.88 |
