EZ Logger High Temp
-40º C to +125º C (-40º F to +257º F)
measurement range
• Stainless steel (316 grade) construction
• Environmental protection to IP-67
• USB interface for setup and download
• Supplied with high capacity battery
• Configuration & Management Software
• Measurement intervals from 1 second to 12 hours
• RoHS compliant
• Suitable for Autoclaves
The EZ Logger-High Temp data logger measures and
stores up to 32,510 temperature readings over the -40ºC to +125ºC (-40ºF to +257ºF) measurement
ranges. The logger is housed in a stainless steel case to
protect the logger from corrosion, impact and moisture
(to IP-67). A long life lithium battery is included which
allows logging for up to 3 years.
The user can easily set up the logger and view down
loaded data by plugging the device into a PC’s USB
port and using our MDAS-Pro software. Data can then
be graphed, printed and exported to other applica
tions. The data logger configuration software is com
patible with Windows 98, NT, 2000, ME, XP, Vista, 7
and 8
Control Software
Easy to install and use, the control
software runs in Windows 2000, XP,
Vista & 7.
The software is used to set-up the data
logger as well as download, graph and
export data to Excel.
The software allows the following
parameters to be configured:
• Logger name
• Degree Fahrenheit / Degree Centigrade
• Logging interval rate (1s, 10s, 1m, 5m,
30m, 1hr, 6hr, 12hr)
• Data rollover (Allows unlimited logging
periods by overwriting the oldest data
when the memory is full)
• Start date and start time
• Includes USB Drivers

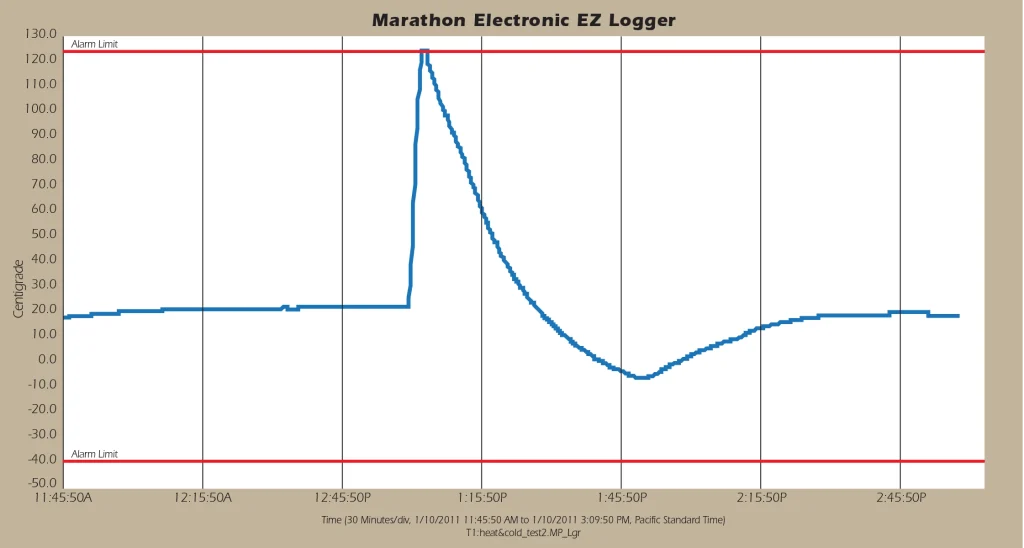

Example: EZ Logger High Temp Humidity/Temperature Plot
