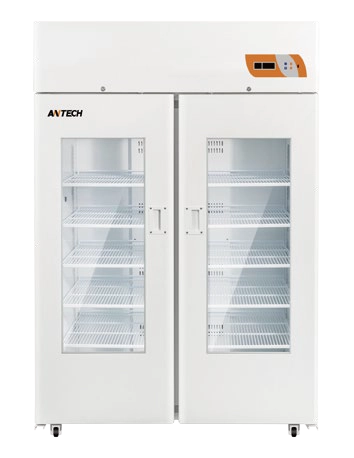

2~8°C Pharmacy Refrigerator[Antech] MPR-1006

MPR-1006

2-8°C Under-counter MODEL: MPR-1006

PharmaSafe series large capacity medical refrigerators are
used to store medicines, vaccines or lab materials with large
volume. The capacity is up to 1410 liters. Forced air cooling
for high-temperature stability and quick temperature recovery
after door open. The dual-pane, insulated glass door provides
superior thermal performance and lower energy consumption.
Solid door (forming door) models are available for light
sensitive materials.
These units use environmentally friendly, natural
refrigerants that are fully compliant with new
EPA/SNAP/UL regulations.
Temperature data storage and USB port are supplied as
standard. A quick check of maximum and minimum temperature
record in previous 24 hours is also available.

Solid door (forming door) models are available for light
sensitive materials.
These units use environmentally friendly, natural
refrigerants that are fully compliant with new
EPA/SNAP/UL regulations.

MODEL	MPR-1006
Door type	2 glass door as standard, solid door optional
Temperature range (°C)	2～8
Capacity (L)	1140
External dimensions W×D×H (mm)	1300×840×1965
Shelves (pcs)	5
Power supply	220V/50Hz 220V/60Hz 120V/60Hz
Data storage & USB port	Y

TC-100 Controller

Microprocessor electronic controller for PharmaSafe series medical refrigerators, ﬁtted with dual LED screen to display inner chamber temperature and key working conditions. Advanced dual sensor control system for accurate temperature control.

Performance

1.Forced air cooling for excellent temperature uniformity 2.Variable (cycle) defrost 3.Intelligent microprocessor controller with LED digital display resolution 0.1 4.Magnetically sealed door with rapid cool-down mode after door opening 5.Dual sensor design: Independent control sensor and display sensor

Environment Friendly

1.Natural refrigerant compliant with EPA and SNAP non-ozone depleting mandates 2.CFC-Free polyurethane foaming insulation 3.High efficiency cooling system for lower energy consumption and carbon emission

Ergonomic Design

1.Door-activated and exterior switch-activated interior LED lighting 2.Self-close door for convenient operation 3.Left/right side open revisable door (capacity less than 600 liters) to suit various space 4.Ultra-quite design reduces noise level

Safety

1.Build-in data storage and USB port for download 2.Quick check of max/min temperature in 24 hours 3.Password protection avoids key parameters unauthorized change 4.Safety door lock, preventing unauthorized access 5.Access port for additional temperature probe 6.Remote alarm contacts

Alarms

1.High temperature 2.Low temperature 3.Open door 4.Power failure 5.Sensor error 6.Low battery

2~8°C PharmaSafe series

	Model	MPR-1006
Main specifications	Type Temperature range (°C) Climate type Capacity (L) Internal W×D×H (mm) External W×D×H (mm) Weight（KGs） Insulation (mm) Cooling type Defrost Refrigerant	Under-counter 2～8 N 136 500×510×570 600×680×812 53 50 Forced air Auto defrost R600a
Control system	Controller Display Display accuracy	TC-100 LED digital 0.1
Power	Power supply (V/Hz) Rated power (W) Rated Current (A)	220/50 220/60 120/60 400 400 420 2.35 2.35 4.8
Data memory	High/low temp check USB port Cloud monitoring (Wi-Fi)	Y Y `CryoMonitor 2000TF`
Alarm functions	Visible/audible alarm High/low temp alarm Remote alarm contact Sensor failure Door open Low battery Power failure	Y Y Y Y Y Y Y
Other feature	Door lock with key Inner LED light Adjustbale foot Caster Test access port Adjustable shelves QTY Door QTY	Y Y – Y Φ20mm x 1 5 2
Material	Exterior Interior Door Insulation	Coated steel Coated steel 3-layer glass door, optional solid door Polyurethane
Shipping	Gross weight (KGs) Packing W×D×H Volume (m³)	258 1340×870×2150mm 2.51
